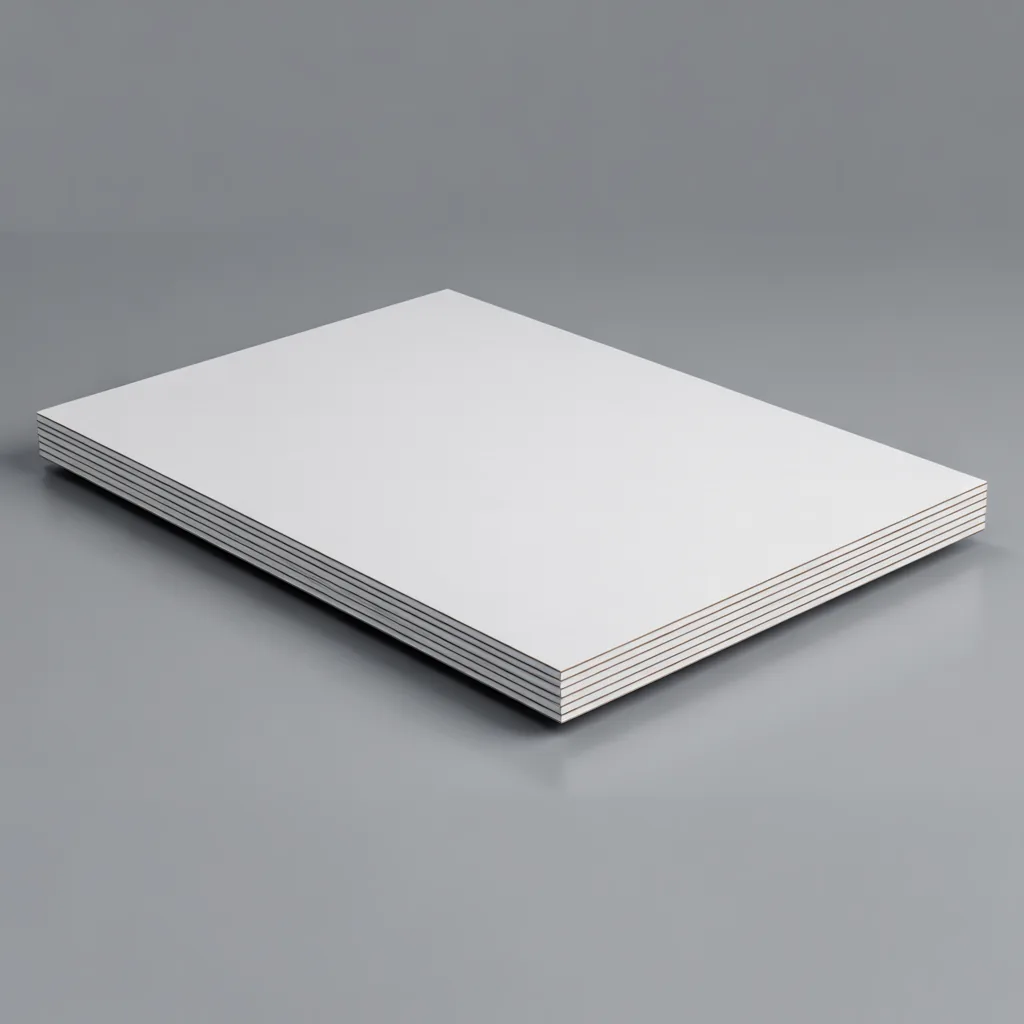

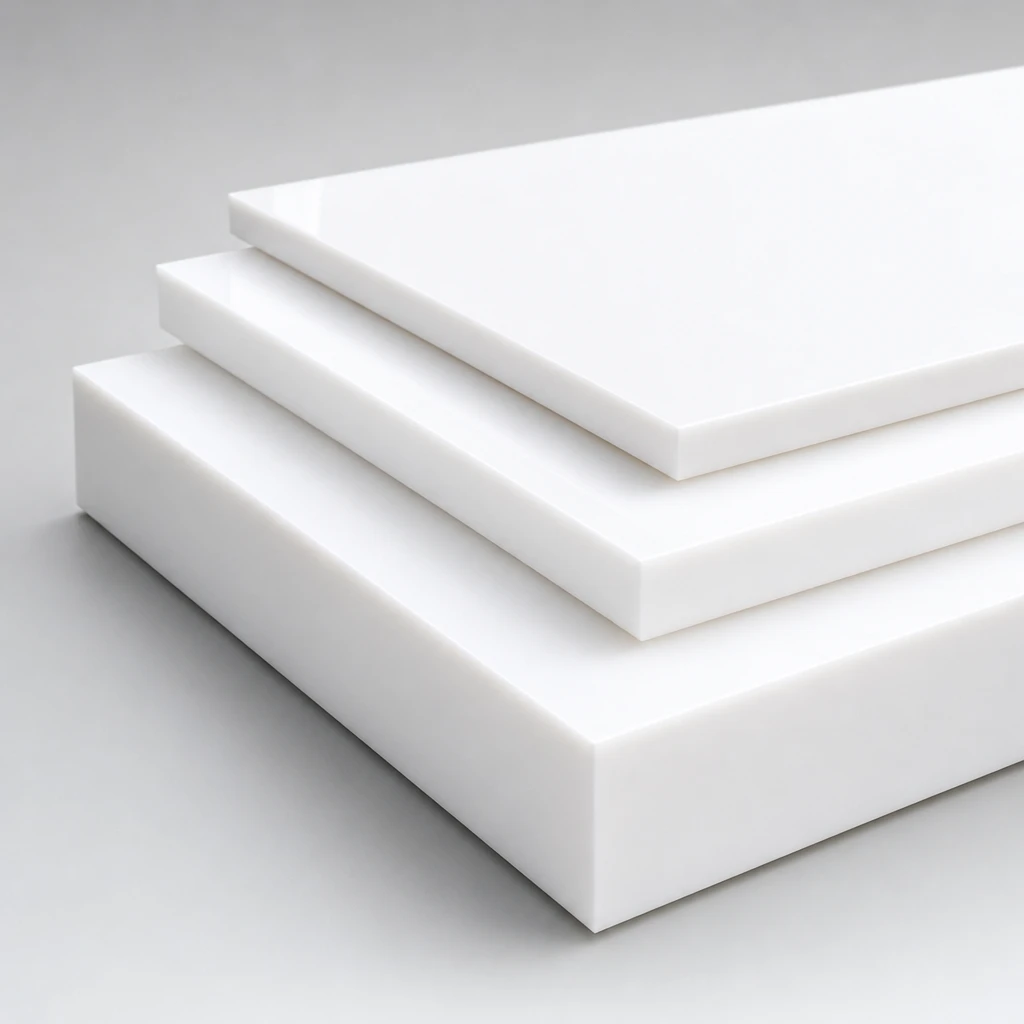

Virgin PTFE Sheet

100% pure virgin PTFE sheet, 1mm–80mm thickness. FDA compliant grade for semiconductor, food processing, pharmaceutical, and electrical insulation applications.

Virgin PTFE Sheet
Virgin PTFE Sheet
In Stock Custom Sizes Global Shipping

Virgin PTFE Sheet — Pure Unfilled Polytetrafluoroethylene

100% pure virgin PTFE sheet, 1mm–80mm thickness. FDA compliant grade for semiconductor, food processing, pharmaceutical, and electrical insulation applications.

Temperature Range-180°C to +260°C
Material100% Virgin PTFE
Thickness1mm ~ 80mm
Sheet SizeUp to 1500 × 1500mm
Tensile Strength≥ 20 MPa
Elongation at Break≥ 200%
FDA GradeFDA 21 CFR 177.1550 compliant
Chemical ResistancepH 0–14 (except molten alkali metals)
100% virgin PTFE — no fillers, no impurities
Smooth solid surface — easy to machine and fabricate
FDA compliant grade for food and pharmaceutical
Excellent electrical insulation properties
Wide operating temperature range
Available from 1mm to 80mm thickness

Applications

SemiconductorFood ProcessingPharmaceuticalElectrical InsulationChemical ProcessingLaboratory EquipmentMedical Devices
Request a Quote ← All Products

Standard Sizes

Sheets in 1mm to 80mm thickness. Custom sizes and cut-to-size available.

Virgin PTFE Sheet Specifications

100% pure PTFE sheet. Smooth, solid, and non-porous — ideal for precision machined parts, linings, and insulating components.

Thickness (mm)Width (mm)Length (mm)Tolerance
1.0300300±0.10mm
2.0500500±0.15mm
3.0600600±0.20mm
5.010001000±0.25mm
10.012001200±0.30mm
20.015001500±0.50mm
30.015001500±0.80mm
50.012001200±1.00mm

Custom cut-to-size and CNC machining available. Send your drawing for a quotation.

Why Virgin PTFE Sheet?

Professional-grade material trusted by engineers worldwide.

🔬 High Purity — 100% Virgin PTFE

No fillers, no reprocessed material, no contaminants. Consistent properties throughout the sheet. FDA grade for sensitive applications.

🛠️ Easy to Machine

Smooth solid surface machines cleanly with standard tools. Ideal for CNC milling, turning, and manual fabrication. Complex shapes with tight tolerances.

⚡ Superior Electrical Insulation

Excellent dielectric strength — widely used in electronics, semiconductors, and high-voltage insulation applications. Stable across wide temperature range.

🧪 Universal Chemical Resistance

Chemically inert across the entire pH range. Not attacked by acids, alkalis, or organic solvents. Safe for food, pharmaceutical, and pure water systems.

🌡️ High & Low Temperature Performance

Retains mechanical properties from -180°C to +260°C. Does not become brittle at cryogenic temperatures or soften at elevated temperatures.

📐 Flexible Range — 1mm to 80mm

Thin sheets for precision insulation, thick sheets for structural components. Custom sizes up to 1500 × 1500mm available.

Related Articles

Engineering reading on this material

Virgin vs Filled PTFE: How to Choose

Compare grades and pick the right one.

PTFE Food and Pharma Compliance Guide

FDA / USP / EU 1935/2004 requirements.

PTFE Rod & Bar (for turned parts)

Round stock 6-300mm for CNC.

PTFE CNC Machined Parts (made-to-print)

Custom parts from your drawings.

Expanded PTFE Sheet (for gasket applications)

Compressible sealing material.

Frequently Asked Questions

Common questions from engineers and procurement teams about this material.

Q: What is virgin PTFE sheet?
Virgin PTFE sheet is an unfilled, 100% pure PTFE plate manufactured by compression molding and sintering. It is the default starting material for CNC machining, gaskets, seals, and laboratory surfaces where chemical resistance and purity matter most.
Q: How thick does virgin PTFE sheet come?
Standard thickness range is 1 mm to 80 mm. The most common stocked thicknesses are 1, 2, 3, 5, 10, 15, 20, 30, 40, 50, 60, and 80 mm. Sheets up to 100 mm are produced to order.
Q: Is virgin PTFE sheet FDA compliant?
Yes. Virgin PTFE is compliant with FDA 21 CFR 177.1550 for repeated food contact. We can supply a declaration of compliance on request for food, beverage, and pharmaceutical projects.
Q: What is the maximum continuous service temperature?
Virgin PTFE sheet is rated for continuous service from -180 °C to +260 °C. It is the broadest working envelope of any commercially available plastic sheet.
Q: Can virgin PTFE sheet be machined?
Yes. Virgin PTFE sheet is the most common stock for CNC machining of seals, valve seats, and laboratory components. Standard machining tolerance is ±0.05 mm; tighter tolerances to ±0.01 mm are achievable with stress-relieving. See our PTFE CNC tolerance guide for the detail.
Q: Is virgin PTFE sheet the same as expanded PTFE sheet?
No. Virgin PTFE sheet is a dense, solid plate with no porosity. Expanded PTFE sheet is microporous, compressible, and is used for flange gaskets. They look different and serve different purposes.
Q: What sizes are available?
Standard sheet size is 600 × 600 mm, 1000 × 1000 mm, 1200 × 1200 mm, and 1500 × 1500 mm. Custom sizes up to 2000 × 2000 mm are available on request.
