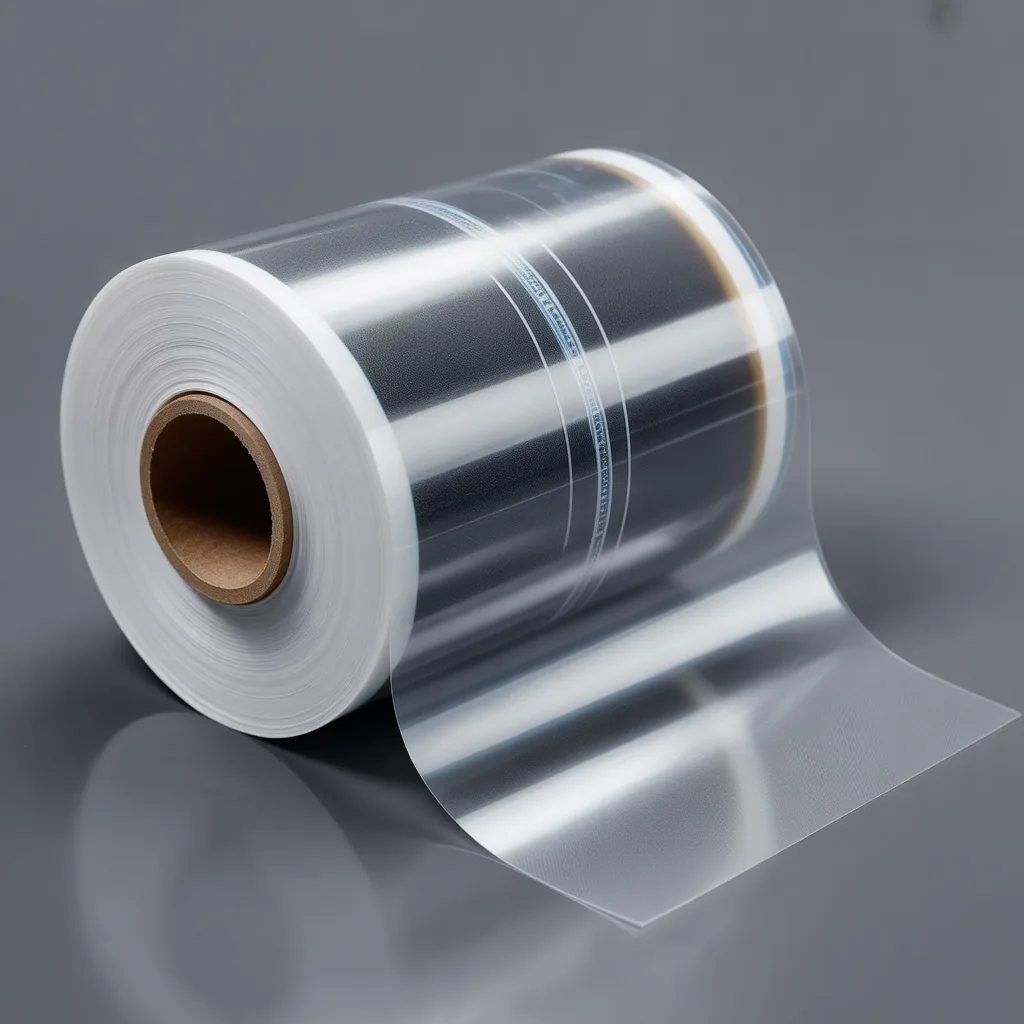

PTFE Electronic Film — High-Performance Dielectric Film

Electronic grade PTFE film, 0.01mm–0.50mm. Dielectric strength ≥ 60 kV/mm. For PCB insulation, flexible circuits, high-frequency electronics, capacitors, and RF/microwave applications.

Temperature Range	-200°C to +260°C
Material	100% Virgin PTFE (Electronic Grade)
Thickness	0.01mm ~ 0.50mm
Width	Up to 1000mm (custom widths available)
Dielectric Strength	≥ 60 kV/mm
Surface	Ultra-smooth, non-porous
Volume Resistivity	≥ 10¹⁷ Ω·cm
Applications	Electronics, PCBs, flexible circuits, high-frequency

Ultra-thin electronic grade PTFE film

Exceptional dielectric strength (≥ 60 kV/mm)

Extremely high volume resistivity (≥ 10¹⁷ Ω·cm)

Low dielectric constant for high-frequency applications

Excellent chemical resistance — unaffected by processing

Available from 0.01mm to 0.50mm thickness

Applications

PCB InsulationFlexible CircuitsHigh-Frequency ElectronicsCapacitorsSemiconductor ProcessingWire & CableRadar & RF Systems

Request a Quote ← All Products

Standard Sizes

Electronic grade film from 0.01mm to 0.50mm. Custom widths up to 1000mm.

PTFE Electronic Film Specifications

Ultra-thin PTFE film engineered for electronic and electrical insulation. Available in various thicknesses for different voltage ratings and frequency requirements.

Thickness (mm)	Dielectric Strength (kV/mm)	Width (mm)	Typical Application
0.010	≥ 60	≤ 200	Low voltage insulation, flexible circuits
0.025	≥ 60	≤ 400	PCB insulation, capacitors
0.050	≥ 60	≤ 600	Wire insulation, cable wrap
0.100	≥ 60	≤ 800	High voltage insulation
0.200	≥ 60	≤ 1000	Structural insulation
0.500	≥ 60	≤ 1000	Heavy-duty insulation

Custom widths, lengths, and slit-to-width available. Contact us for electronic grade material specifications and samples.

Why PTFE Electronic Film?

Professional-grade material trusted by engineers worldwide.

⚡ Superior Dielectric Properties

Dielectric strength ≥ 60 kV/mm with stable dielectric constant across wide frequency range. Essential for high-frequency electronics, RF, and microwave applications.

🔌 High Frequency Performance

Low loss tangent at microwave and RF frequencies. Ideal for radar systems, satellite communications, 5G infrastructure, and high-speed digital circuits.

🧪 Chemical Resistance in Processing

Unaffected by PCB manufacturing processes — resists etching, plating, and cleaning chemicals. Maintains electrical properties after harsh processing steps.

📏 Ultra-Thin Precision

Available as thin as 0.01mm (10μm). Consistent thickness uniformity across the roll. Critical for high-precision electronic applications.

🌡️ Temperature Stable

Stable dielectric performance from -200°C to +260°C. Suitable for environments with extreme temperature cycling — aerospace, automotive, and industrial electronics.

🔬 Clean Electronic Grade

Manufactured under controlled conditions to minimize contamination. Low outgassing — safe for vacuum and space electronics applications.
